Namespace usage details window

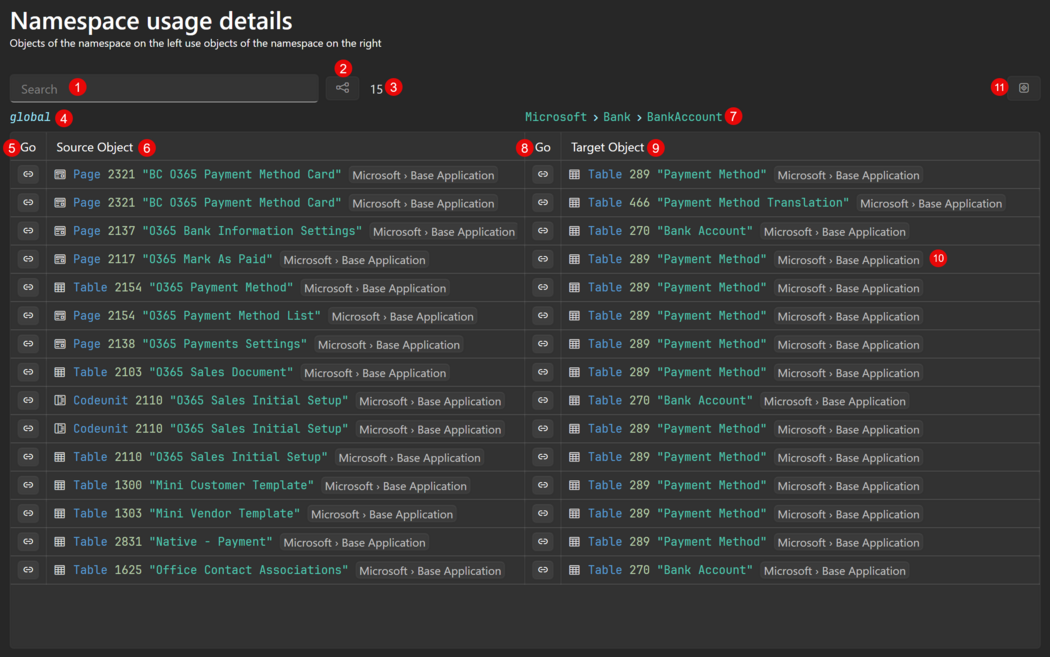

The Namespace usage details window shows the evidence for a dependency between two namespaces: the pairs of objects in which an object of the source namespace uses an object of the target namespace. Its subtitle reads “Objects of the namespace on the left use objects of the namespace on the right”.
Opening it
On the Namespaces page, on the Usings tab or the Usages tab, double-click a namespace, or select it and then the namespace dependency details button.
| # | Name | Description |
|---|---|---|
| 1 | Search | Filters the pairs by the text of the source or the target object. |
| 2 | Find usages | “Find usages for selected item.” Opens the Usages window with the places where the source object of the selected pair uses its target object. |
| 3 | Object pair count | The number of object pairs. While a search filters the list, it reads n of total. |
| 4 | Source namespace | The full name of the namespace whose objects use the other. |
| 5 | Go (source object) | Opens the source object in the object view. |
| 6 | Source object | The object that uses the target object. |
| 7 | Target namespace | The full name of the namespace whose objects are used. |
| 8 | Go (target object) | Opens the target object in the object view. |
| 9 | Target object | The object that the source object uses. |
| 10 | Row (object pair) | One source object and one target object it uses. Double-click it to find the usages, as with button 2. |
| 11 | Reveal selected item | Scrolls the list back to the selected pair when it is out of view. |
Related
- Namespaces page: the namespaces and their dependencies.
- Usages window: where the source object uses the target object.
