Workspace window

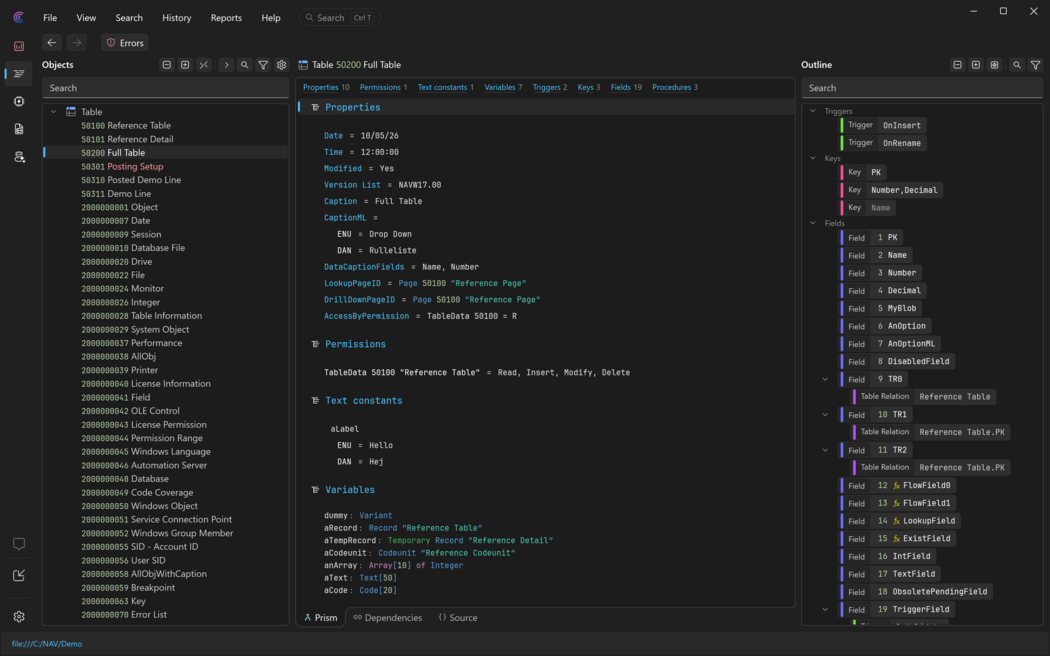

The workspace window shows one open object store. You browse, search and analyse the objects here. It has the menus and a search button in its title bar, a rail of pages on the left, and a status bar at the bottom.

Opening it

Open an object store; see Opening an object store. Each store gets its own window.
Open a store that is already open, and Prism brings its window to the front.

The window opens maximized unless you turn off Open workspace window maximized on the Settings page.

#	Name	Description
1	Menus	See Menus.
2	Search	Opens Universal Search, as `Ctrl`+`T` does. The button hides when the window is too narrow to fit it beside the menus.
3	Navigation rail	The pages of the window, Operations, the control panel button and Settings. See Navigation rail.
4	Page area	The page selected in the rail, here the Objects page.
5	Status bar	The path of the object store and, for a mirror, its synchronization. See Status bar and notifications.

Navigation rail

#	Name	Description
1	Solution	Shows the Solution page.
2	Objects	Shows the Objects page.
3	Interop References	Shows the Interop References page (experimental).
4	Reports	Shows the Reports page.
5	MCP Server	Shows the page where you run the MCP server for AI agents.
6	Operations	Shows whether Prism is running tasks in the background. Select it to list the running tasks.
7	Show Prism control panel	Brings the control panel to the front (`Ctrl`+`P`).
8	Settings	Shows the Settings page.

Hover over an icon to see what the page is for. The window opens on the Objects page.

Mark	Meaning
Error mark on Solution	Some objects could not be parsed. The window then opens on the Solution page, so you see the failures first.
Warning mark on Solution	Some objects have no name.
Amber dot on Interop References	Prism is scanning for interop references.
Green dot on Interop References	Prism has found interop references.

Hide the Solution and Interop References pages with Show Solution page and Show Interop References page on the Settings page.

Menus

The menus sit in the title bar, left to right. Each menu is shown open beside its items.

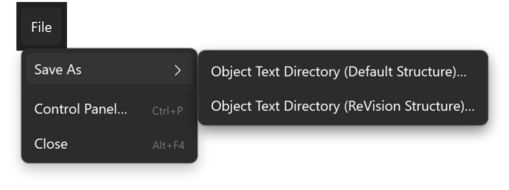

File

Save As

Saves the objects as a directory store, one file per object, in an empty folder you choose. See Save a store as a directory store.

Control Panel…

Ctrl+P. Brings the control panel to the front.

Alt+F4. Closes the object store and its window. With Confirm closing object store on, on the Settings page, Prism asks first.

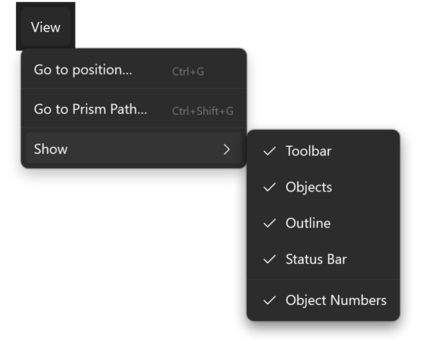

View

Go to position…

Ctrl+G. Opens Go to position.

Go to Prism Path…

Ctrl+Shift+G. Opens Go to Prism Path.

Show

Shows or hides parts of the window. Each item is a check mark, on by default. Prism remembers your choices.

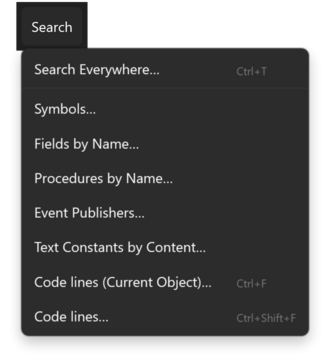

Search Everywhere…: Ctrl+T. Opens Universal Search.
Symbols…: Opens Universal Search in a window of its own, narrowed to members with k:member.
Fields by Name…: Opens Universal Search in a window of its own, narrowed to fields with k:field.
Procedures by Name…: Opens Universal Search in a window of its own, narrowed to procedures with k:procedure.
Event Publishers…: Opens Universal Search in a window of its own, narrowed to event publishers with is:publisher.
Text Constants by Content…: Opens Text Constants.
Code lines (Current Object)…: Ctrl+F. Opens Code Lines for the current object.
Code lines…: Ctrl+Shift+F. Opens Code Lines for all objects.

Reports

Each item saves a CSV file to a location you choose. The Reports page runs the same reports.

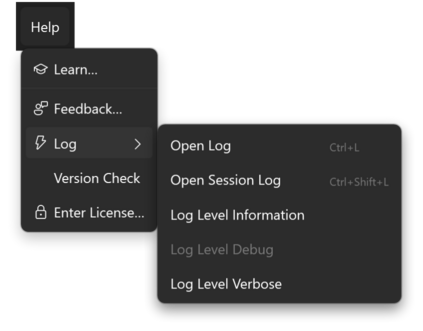

Help

Learn…

Opens this manual in your browser.

Feedback…

Opens the Feedback window.

Log

Open Log: Ctrl+L. Opens the log, including entries from earlier Prism sessions.
Open Session Log: Ctrl+Shift+L. Opens the entries logged since Prism started.
Log Level Information: Logs at the Information level. A check mark shows the current level.
Log Level Debug: Logs at the Debug level, with more detail.
Log Level Verbose: Logs everything. Select it when Statical support asks you to.

Version Check

Checks for a newer version of Prism for C/AL.

Enter License…

Opens the Activate license window.

Keyboard shortcuts

These keys work anywhere in the workspace window.

Key	Action
`Ctrl`+`T`	Open Universal Search.
`Ctrl`+`Shift`+`P`	Open Universal Search on commands (`>`).
`Ctrl`+`Shift`+`O`	Open Universal Search on the members of the current object (`@`).
`Ctrl`+`Shift`+`S`	Open Universal Search on members (`k:member`).
`Ctrl`+`F`	Search the code lines of the current object.
`Ctrl`+`Shift`+`F`	Search the code lines of all objects.
`Ctrl`+`G`	Open Go to position.
`Ctrl`+`Shift`+`G`	Open Go to Prism Path.
`Ctrl`+`Shift`+`E`	Expand the object index to fill the page, or return it to its panel. See Expanded object index.
`Alt`+`Left` or the mouse Back button	Go back to the previous place.
`Alt`+`Right` or the mouse Forward button	Go forward again.
`Ctrl`+`Space`	Go to the current place in the history again, for example after you scrolled away from it.
`Ctrl`+`P`	Bring the control panel to the front.
`Ctrl`+`L`	Open the log.
`Ctrl`+`Shift`+`L`	Open the session log.
`Ctrl`+`Alt`+`L`	Open the folder that holds the log files.
`Alt`+`F4`	Close the object store and its window.

Keys that work in one part of the window:

Key	Where	Action
`Right` / `Left`	Object index, Dependencies tab	Expand or collapse the selected group.
`Enter`	Expanded object index, Dependencies tab	Open the selected object.
`Esc`	Expanded object index	Return the object index to its panel.
`Esc`	Go to position, Go to Prism Path	Close the window.
`Esc`	Results windows	Close the window, while Escape closes window is on, on the Settings page.

Status bar and notifications

The status bar of a mirror while it synchronizes.

#	Name	Description
1	Store path	Where the object store is. Select it to open the location.
2	Synchronization status	For a mirror only: what the synchronization is doing.
3	Progress bar	Runs while the mirror synchronizes.

Hide the status bar with View › Show › Status Bar.

Notifications, such as Copied to clipboard, appear at the bottom right of the window and close by themselves.

Results windows

Search results open in a window of their own beside the workspace window, so you can keep several open. A results window has a small rail with the results page and Settings below it; select the results page in the rail to return to it from Settings. A results window holds one of these pages:

Make room for the object view

Use this on a small screen, or to read long code without scrolling sideways.

Choose View › Show.
Clear Objects to hide the object index, and Outline to hide the outline.
Optionally clear Toolbar and Status Bar as well.

The object view takes the room. The View menu turns accent coloured as a reminder; select the same items again to bring the parts back. To hide a panel for a moment, double-click the splitter beside it; see Resize and hide panels.

Go back to a place you visited

Prism records every place you navigate to in a window: objects, declarations and code lines.

To step back or forward one place, press Alt+Left or Alt+Right, or select Back or Forward on the Objects page toolbar.

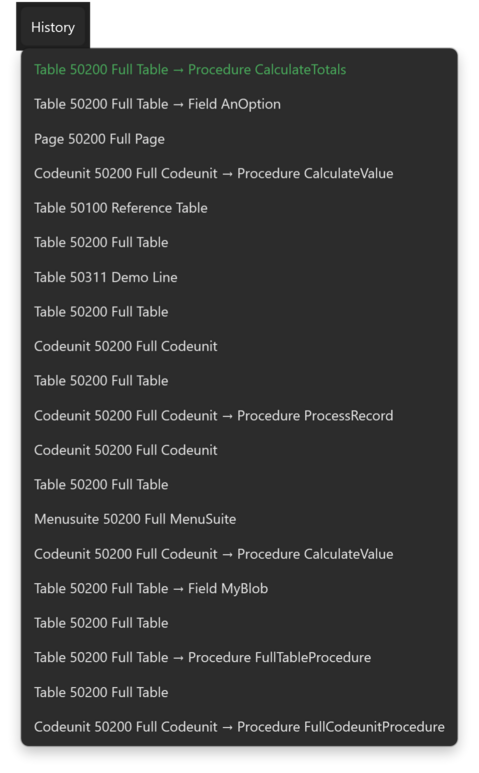

To jump to an earlier place, open the History menu and select it.
To return to where you are in the history after scrolling away, press Ctrl+Space.
