Mirrors

A mirror is a local copy of the objects of a Dynamics NAV database, kept up to date in the background. Prism for C/AL exports the objects as text through the C/SIDE development environment, finsql.exe, and you open the mirror as an object store without exporting anything yourself. You define and manage mirrors on the Mirrors page of the Control Panel.

A mirror's life: one full export, then a synchronization on every interval until you re-initialize it.

Opening it

Select Mirrors in the rail of the main window.
Select File › Mirrors… in the main window, or press Ctrl+M.
Select Open mirror… on the Home page while no mirror is defined.

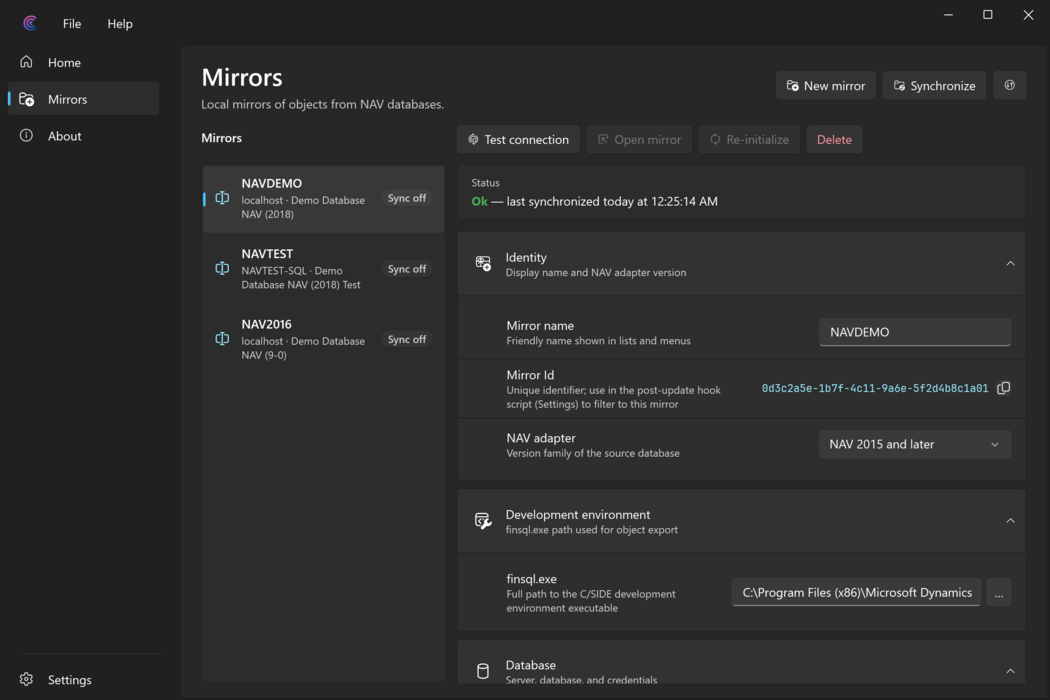

Prism for C/AL Mirrors page with a synchronized mirror selected — The Mirrors page with a mirror selected.

#	Name	Description
1	Mirror list	Your mirrors, and the commands for all of them. See Mirror list.
2	Mirror commands	Test, open, re-initialize or delete the selected mirror. See Mirror settings.
3	Status	The state of the mirror's last synchronization. See Mirror status.
4	Mirror settings	The selected mirror's settings, in groups. See Mirror settings.

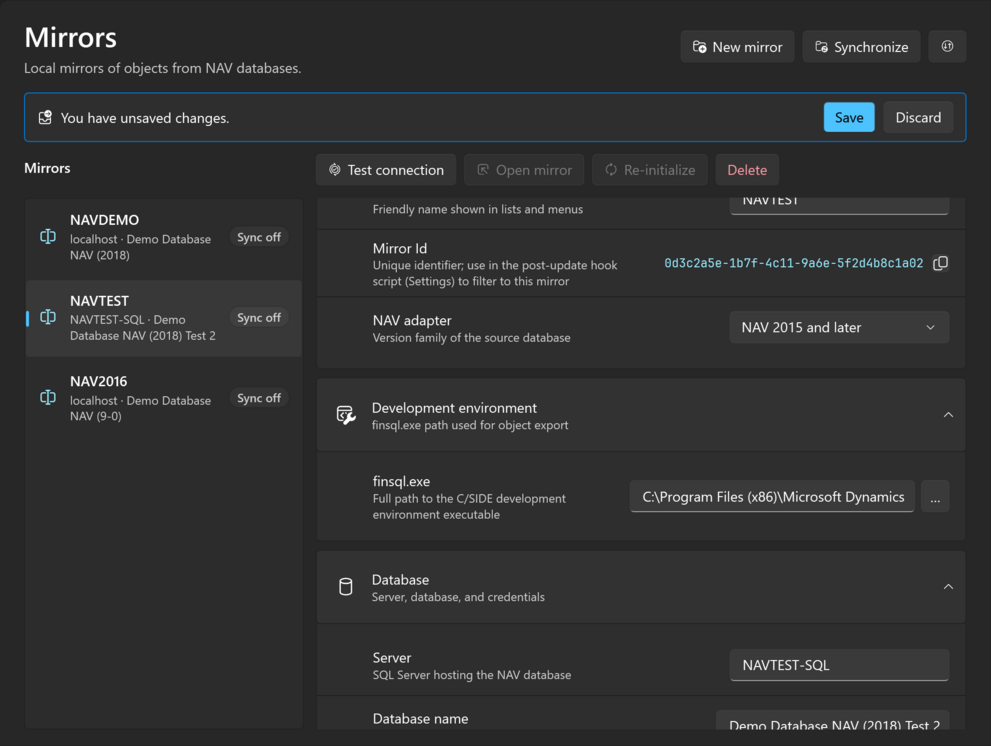

Mirror list

The left side of the page lists your mirrors. The commands above the list act on all mirrors.

#	Name	Description
1	New mirror	Adds a mirror. See Create a mirror.
2	Synchronize	Synchronizes all mirrors that have automatic synchronization on, now. See Synchronize mirrors.
3	More actions	Import… and Export…. See Export and import mirrors.
4	Unsaved changes	Save saves all mirrors; Discard drops every unsaved change.
5	Mirror	The mirror name, its server and database, and Sync on or Sync off. A bar under the row runs while that mirror synchronizes.

Changes to mirrors are not saved until you select Save in the banner that reads You have unsaved changes. Save saves all mirrors at once; Discard drops every unsaved change.

When you open a mirror from the page, select Synchronize or Export…, or restart Prism to apply a theme change while there are unsaved changes, Prism asks Save your changes?: "There are unsaved changes to one or more mirrors."

Button	Effect
Save	Saves all mirrors, then carries on.
Don't save	Carries on without saving. Your changes stay on the page, unsaved.
Cancel	Stops, and leaves your changes unsaved on the page.

Mirror settings

The right side of the page shows the selected mirror: its commands, its status and its settings.

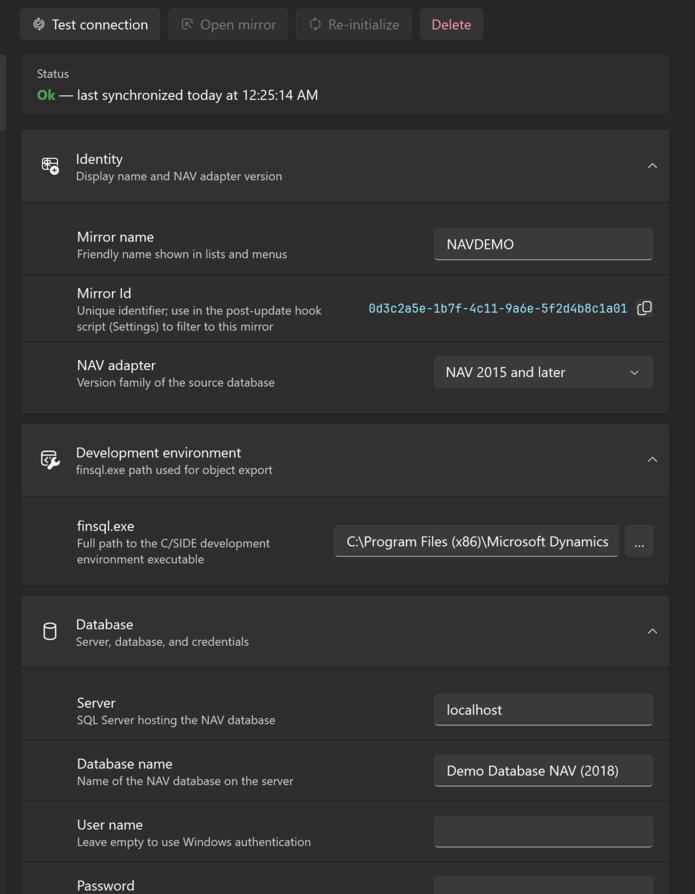

The details of a selected mirror: the command bar, the Status card and the Identity and Development environment groups — The details of the selected mirror.

#	Name	Description
1	Test connection	Tests that Prism can reach the database and the service tier. Prism says Mirror is OK! or lists the problems. Enabled once the NAV adapter, server, database name and finsql.exe path are filled in, and a user name when you give a password.
2	Open mirror	Opens the mirror as an object store. Enabled once the mirror has synchronized at least once.
3	Re-initialize	Exports all objects again. See Re-initialize a mirror.
4	Delete	Marks the mirror for deletion. It is deleted when you select Save; Discard keeps it.
5	Status	The state of the mirror's last synchronization. See Mirror status.
6	Setting groups	Identity, Development environment, Database, Service tier, Filters and Synchronization. They start expanded; the settings are listed below.

Each mirror has these settings, in the groups the page shows. They apply from the mirror's next synchronization.

Setting	Options	Default	Effect
Identity
Mirror name	Any text	Empty; the list then shows `Server.Database`	The name shown in lists and menus.
Mirror Id	Read-only	Set when you first save the mirror	The mirror's unique identifier, with a button that copies it. Use it in a post-update hook to act on one mirror only.
NAV adapter	NAV 2013, NAV 2015 and later	Set from the version of the finsql.exe you pick	The version family of the database, which decides how Prism talks to it.
Development environment
finsql.exe	A full path; … opens Select finsql.exe	Empty	The C/SIDE development environment that exports the objects. Use the one that belongs to the database. A version no adapter supports shows This version of NAV (…) is not supported by any NAV adapters. A file that does not exist shows The file does not exist.
Database
Server	A SQL Server name	Empty	The SQL Server that hosts the NAV database.
Database name	A database name	Empty	The NAV database on the server.
User name	A SQL Server login	Empty: Windows authentication	The login Prism and the development environment connect with.
Password	The login's password	Empty: Windows authentication	The field shows the password as plain text. Prism stores it encrypted and never exports it.
Trust server certificate	On, Off	Off	Skips validation of the SQL Server certificate chain. Turn it on when the server uses a self-signed certificate.
Service tier (shown when the NAV adapter supports service tiers)
Server name	A host name; … looks it up	Empty	The host of the NAV service tier. See Choose a service tier.
Instance name	A service instance name	Empty	The service tier instance.
Management port	A port number	`7045`	The service tier's management port.
Filters
Object ID include filter	ID ranges separated by `\|`, such as `..41999999\|43000000..43999999\|45000000..`	Empty: every object	Mirrors only the objects whose IDs match. Use it to keep to the objects your NAV license lets you export as text.
Version list exclude filter	Values with `` wildcards, separated by `\|`, such as `SOMEADDON*\|RESERVED`	Empty: no object is left out	Leaves out the objects whose version list matches.
Synchronization
Object encoding	A blank entry, or a code page from the list	Blank: the Default object encoding setting	The text encoding of the mirrored object files.
Automatic synchronization	On, Off	On	When on, Prism synchronizes the mirror on the Synchronization interval and when you select Synchronize.

Prism-wide mirror settings, such as the interval and the connection timeout, are in the Mirrors settings.

Mirror status

The Status card of a mirror whose last synchronization failed, with the links View details, Copy to clipboard and Troubleshoot — The status of a mirror whose last synchronization failed.

#	Name	Description
1	Status	Says when the synchronization failed, and why.
2	View details	Shows the error message, its details and the stack trace.
3	Copy to clipboard	Copies the same text.
4	Troubleshoot	Opens Troubleshooting in your browser, at A mirror cannot contact a service tier.

Status	Meaning
Synchronization in progress	Prism is synchronizing the mirror now.
Not synchronized, yet. Press 'sync now' button, or wait until next scheduled synchronization	The mirror has never synchronized, so it cannot be opened yet.
Ok — last synchronized …	The last synchronization succeeded, at the date and time shown.
Error when last synchronized (…)	The last synchronization failed. The mirror keeps the objects of its last successful synchronization.

After an error, three links help you find the cause:

View details shows the error message, its details and the stack trace.
Copy to clipboard copies the same text, for instance to send to us.
Troubleshoot opens Troubleshooting in your browser.

Create a mirror

Create a mirror to browse the objects of a NAV database. You need the C/SIDE development environment that belongs to the database, and NAV 2013 or later.

Select New mirror. A row named <New Mirror> is added and selected.
Type a Mirror name.
Select … next to finsql.exe and pick the development environment. Prism sets the NAV adapter from the file's version.
Type the Server and Database name. Leave User name and Password empty to use Windows authentication.
If the development environment needs a particular service tier, choose a service tier.
Select Test connection. Prism says Mirror is OK! when it can reach the database and the service tier.
Select Save in the banner.

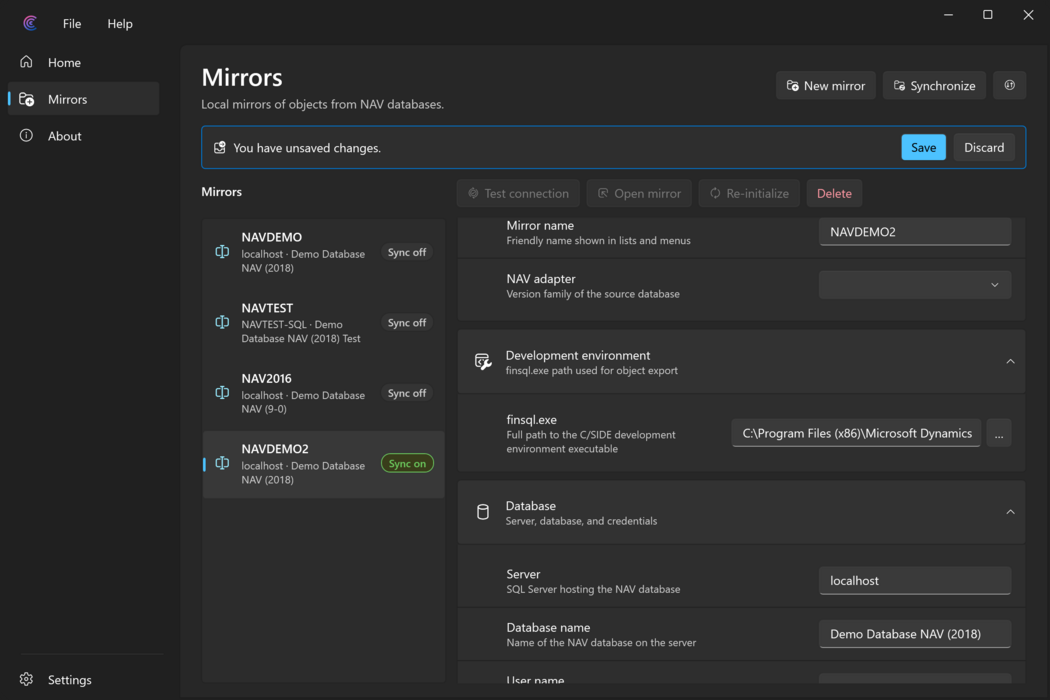

A new mirror filled in on the Mirrors page, with the unsaved changes banner showing — A new mirror, tested and ready to save.

#	Name	Description
1	Save	Saves the new mirror (step 7).
2	Test connection	Checks the database and service tier (step 6).
3	Mirror name	The name you typed (step 2).
4	finsql.exe	The development environment, with … to pick it (step 3).
5	Server and Database name	The database to mirror (step 4).

The mirror synchronizes at the next scheduled synchronization, or when you select Synchronize. The first synchronization exports every object, which takes a few minutes. Later synchronizations export only new and changed objects and remove deleted ones.

Open a mirror

Open a mirror to browse its objects in a Workspace window. The mirror must have synchronized at least once.

Select Open mirror… on the Home page. The Open Database Mirror dialog opens.
Select the mirror, then select OK, or double-click the mirror.

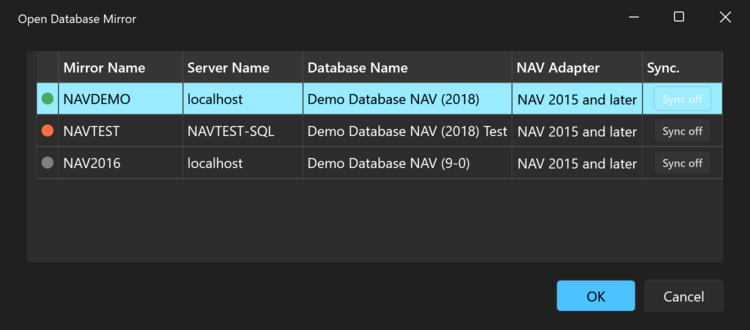

Prism for C/AL Open Database Mirror dialog with a mirror selected — The Open Database Mirror dialog.

#	Name	Description
1	Status	Green when the last synchronization succeeded, red when it failed, grey when the mirror has not synchronized yet. Hover it for the reason.
2	Mirror list	Your mirrors, with the columns Mirror Name, Server Name, Database Name, NAV Adapter and Sync.
3	OK	Opens the selected mirror.
4	Cancel	Closes the dialog.

The mirror then opens as described in Opening an object store.

You can also select a mirror under File › Open › Mirror in the main window, select Open mirror on the Mirrors page, or reopen it from the recent list on the Home page. A mirror that has not synchronized yet does not open; Prism says Mirror has not been synchronized, yet.

While a synchronization commits its changes, the mirror does not open: Prism says The mirror is committing changes; please try again in a few secs. or Sorry, the mirror just started committing changes; please try again in a few secs. Wait a few seconds and open it again. See A mirror does not open while it commits changes.

Synchronize mirrors

Prism synchronizes every mirror that has Automatic synchronization on: first two minutes after it starts, then on the Synchronization interval, 15 minutes by default. To synchronize now:

Select Synchronize on the Mirrors page. If you have unsaved changes, Prism asks you to save them first.
Wait while the Synchronizing chip shows beside the page title. The Home page shows the progress too.

Synchronize is unavailable while a synchronization runs. When a synchronization fails, the mirror's status says why.

Re-initialize a mirror

Re-initialize a mirror when fields have been renamed in NAV or many objects have changed, or to start a failing mirror over. The mirror must be saved and have synchronized once.

Select the mirror on the Mirrors page.
Select Re-initialize. Prism asks Re-initialize mirror?
Select Yes. Prism drops the mirror's copy of the objects. The next synchronization exports them all again; select Synchronize to start it now.

The full export takes a few minutes, and you cannot open the mirror until it has finished.

Choose a service tier

Choose a service tier when the development environment must reach a particular NAV service tier to export objects. Service tier selection needs NAV 2013 R2 CU10 or later, and the mirror's finsql.exe, Server and Database name filled in.

Select … next to Server name in the Service tier group. The Select Service Tier window lists the service tiers registered in the mirror's database.
Select a service tier. The columns are Server Name, Service Instance, Management Port, Last Active and Status.
Select OK, or double-click the row. Prism fills in Server name, Instance name and Management port.
Select Save in the banner.

The Select Service Tier window.

#	Name	Description
1	Service tiers	The service tiers registered in the mirror's database (step 2).
2	OK	Fills in the mirror's service tier settings (step 3).
3	Cancel	Closes the window and changes nothing.

If Prism cannot read the list from the database, it says Error fetching service tier information from database. You can also type the three values yourself. Selecting OK with no row selected says No service tier selected. Please select service tier or press Cancel.

Export and import mirrors

Export your mirror definitions to share them with a colleague or move them to another computer.

To export:

Select More actions › Export…. If you have unsaved changes, Prism asks you to save them first.
Choose a file name. Prism saves every mirror to a .mirrors file, without passwords.

To import:

Select More actions › Import… and choose a .mirrors file. The Import database mirrors window lists the mirrors in the file, with the counts Candidates and Will import.
Check each mirror's NAV adapter and change it if needed. A mirror that already exists shows the reason in the Conflict column and is not imported.
Select Import (N). The mirrors are added to the list.
Type the passwords of mirrors that use SQL Server authentication, then select Save in the banner.

The Import database mirrors window.

#	Name	Description
1	Candidates and Will import	How many mirrors the file holds, and how many will be imported.
2	Mirrors	The mirrors in the file, with Mirror name, Server and Database.
3	NAV adapter	The adapter the mirror will use; change it if needed (step 2).
4	Conflict	Why a mirror cannot be imported, such as a mirror that already exists.
5	Import (N)	Adds the mirrors to the list (step 3).
6	Cancel	Closes the window and imports nothing.

Run a script after an update

Run a script of yours each time a mirror update writes object files, for instance to copy them to a version control folder or an AI workspace. One script serves all mirrors.

Select Copy sample script in Settings › Mirrors › Post-update hook, paste it into a .ps1 file and adapt it.
Select Browse... next to Post-update hook and pick the script.
In Input, choose what the script receives on standard input.

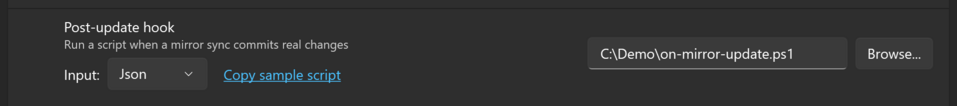

The Post-update hook setting on the Settings page, with a script path, the Input choice and Copy sample script — The post-update hook in the Mirrors settings.

#	Name	Description
1	Post-update hook	The path of your script (step 2).
2	Browse...	Picks the script.
3	Input	What the script receives on standard input (step 3).
4	Copy sample script	Copies a sample script to adapt (step 1).

Prism runs the script after a synchronization, or the opening of a mirror, that added, changed or deleted object files. To act on one mirror only, compare PRISM_MIRROR_GUID with its Mirror Id. Clear the path to stop running the script.

Script	Runs under
`.ps1`	PowerShell 7 if it is installed, otherwise Windows PowerShell 5.1
`.bat`, `.cmd`	`cmd`
`.sh`	`sh`

The script receives these environment variables:

Variable	Value
`PRISM_MIRROR_DIR`	The mirror's root folder.
`PRISM_MIRROR_OBJECTS_DIR`	The folder that holds the `.txt` object files.
`PRISM_MIRROR_NAME`	The mirror name.
`PRISM_MIRROR_GUID`	The Mirror Id.
`PRISM_MIRROR_DB_SERVER`	The database server.
`PRISM_MIRROR_DB_NAME`	The database name.
`PRISM_UPDATE_KIND`	`Full` or `Incremental`.
`PRISM_ADDED_COUNT`	The number of object files added; on a full update, every object.
`PRISM_CHANGED_COUNT`	The number of object files changed.
`PRISM_DELETED_COUNT`	The number of object files deleted.

The Input setting chooses what Prism writes to the script's standard input:

Input	Standard input
`None`	Nothing; the script uses the environment variables only.
`PlainText`	The update kind on the first line, then one line per file, prefixed `+` for added, `~` for changed and `-` for deleted.
`Json`	One JSON object with the time, the mirror's name, Mirror Id, folder, server and database, the update kind, and the lists of added, changed and deleted files.

Prism stops a script that is still running after 30 seconds. A script that exits with a code other than 0, or that times out, is recorded in the log; Prism shows no message.
